The Timloc multi-function 1143 cavity wall weep designed for cavity ventilation and reliable discharge of water from inside cavity walls. This could be over external lintels or wherever a cavity tray system is installed.
For use in any situation where water must be discharged from an external wall, including:
- At ground floor slab level
- Within cavity tray systems
- Over external lintels
- Where a cavity must be ventilated
- On external walls – 100mm or more in thickness – built from brick, block, or stone
Length:
- 100mm
Features and Benefits:
• Purpose made and pre-formed to guarantee reliable discharge of water
• Less prone to inadvertent pointing-up than weep holes formed by simply leaving the perp. joint open
• Integral front grille prevents entry of large nest building insects into the cavity when using product 1143

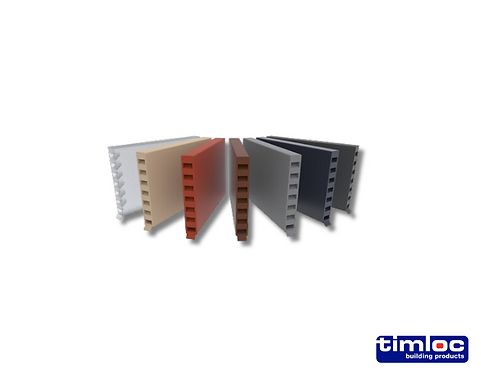

• Range of colours to blend with brick or mortar colour: Terracotta, Buff, Brown, Clear, White, Grey, Black or Blue Black
• Individual extension pieces (1144) can be clipped together to create a longer extension
• 1143 airflow = 165mm2 Free area/unit
Timloc Cavity Wall Weep (1143)
- Wall weeps should be used wherever water could collect inside a cavity wall, such as over external lintels, or wherever a cavity tray system is installed.
- To work effectively wall weeps should be placed directly on top of the base of a cavity tray or DPC, or on the front flange of the lintel.
- Wall weeps should be spaced at 450mm centres to comply with NHBC recommendations.
- Care should be taken to ensure the wall weep is kept clear of mortar and does not become blocked. This is particularly important at the back of the weep which could be blocked by mortar droppings from above.
